COUGAR OmnyX Mid-Tower PC Case

1/12

$224.99

The COUGAR OmnyX takes a different approach to PC case design with its Omnidirectional Dynamic Flow System (ODF), combining a symmetrical dual-chamber layout, dual tempered-glass side panels, and powerful cooling into a case designed to look and function from either side of your setup.

Four massive 160mm ARGB PWM fans come pre-installed, creating a front-to-rear airflow path straight out of the box. With support for up to 7 fans, a 360mm motherboard-side radiator, graphics cards up to 380mm, vertical GPU mounting, and reverse-connector motherboards, the OmnyX is built for high-performance showcase systems.

Key Features

Omnidirectional Dynamic Flow System: A symmetrical dual-chamber architecture designed to maintain effective airflow and functionality across different placement orientations.
Dual Tempered-Glass Design: Glass panels on both sides showcase the build while complementing the case's symmetrical layout.
Four 160mm ARGB PWM Fans Included: Two forward-blade front fans and two reverse-blade rear fans provide substantial cooling straight out of the box.
Up to 7 Fans: Supports additional motherboard-side cooling for a maximum capacity of seven fans.
Up to 360mm Radiator Support: Supports a 360mm radiator on the motherboard side, with additional radiator options at the front and rear when using the required brackets.
380mm GPU Clearance: Accommodates graphics cards up to 380mm / 15".
Vertical GPU Support: Seven horizontal expansion slots can be converted for vertical GPU installation.
Reverse-Connector Motherboard Support: Designed to accommodate compatible reverse-connector motherboard layouts for cleaner cable routing.
Ambidextrous I/O Module: A sliding rail system allows the I/O module to be repositioned between the left and right sides.
Integrated RGB Hub: Supports lighting control and synchronization with compatible motherboard systems.
Concealed Cable Management: Cables are routed through the integrated base compartment to maintain a clean interior.
Toolless Components: Toolless fan, PSU, and storage brackets help simplify installation.
Magnetic Dust Filters: Quick-release filtration helps make routine cleaning and maintenance easier.

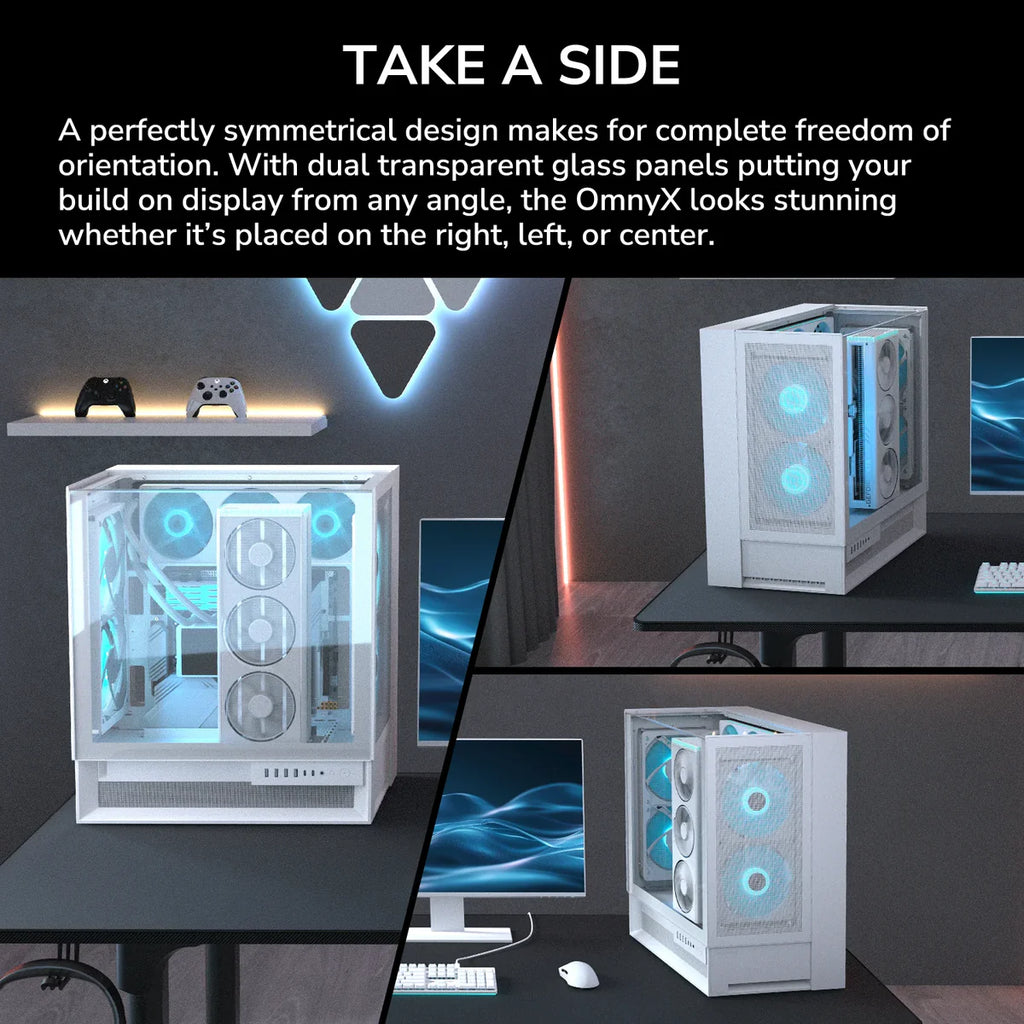

Omnidirectional Design

The OmnyX's Omnidirectional Dynamic Flow System uses a symmetrical dual-chamber structure designed around flexible placement.

Dual tempered-glass side panels and a mirrored layout allow the case to maintain its visual presence whether positioned toward the left, right, or center of a desk.

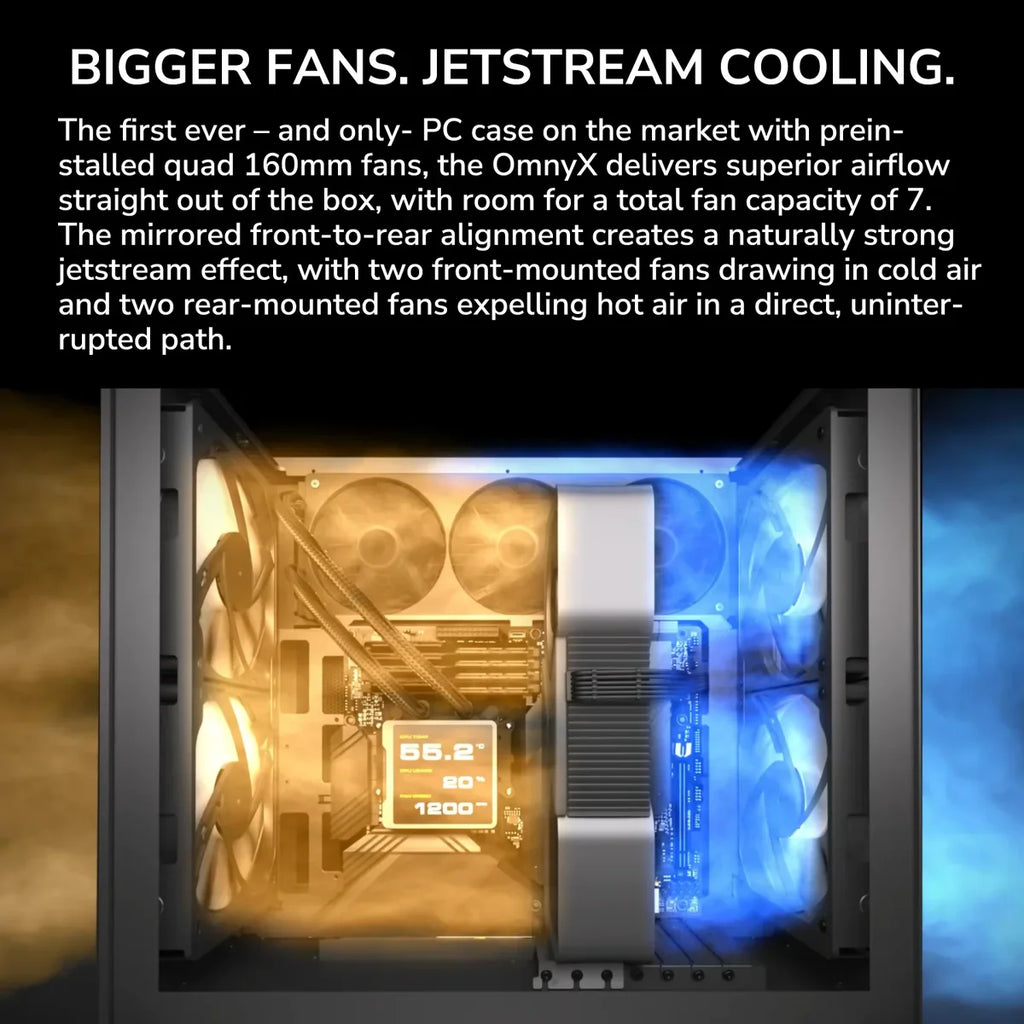

Quad 160mm Cooling

The OmnyX arrives with four 160mm ARGB PWM fans pre-installed:

Front

2 × 160mm Forward-Blade ARGB PWM

Rear

2 × 160mm Reverse-Blade ARGB PWM

The included fans operate between 300–1200 RPM ±10%.

The forward- and reverse-blade arrangement is designed to maintain a clean visual appearance while creating a direct front-to-rear airflow path through the chassis.

Fan Support

The OmnyX supports a maximum of 7 fans:

Front

2 × 120mm*
2 × 140mm*
2 × 160mm

Motherboard Side

3 × 120mm

Rear

2 × 120mm*
2 × 140mm*
2 × 160mm

*120mm and 140mm front/rear installations require a dedicated bracket, which may not be included in all regions.

Water Cooling Support

Front*

280mm
240mm
140mm
120mm

Motherboard Side

360mm
240mm

Rear*

280mm
240mm
140mm
120mm

*Front and rear radiator installation requires a dedicated bracket. According to the supplier, this bracket may not be included in some regions.

GPU Support

The OmnyX accommodates graphics cards up to:

380mm / 15"

Its seven horizontal expansion slots can also be converted for vertical GPU installation, giving builders another way to showcase large graphics cards through the dual-glass chassis.

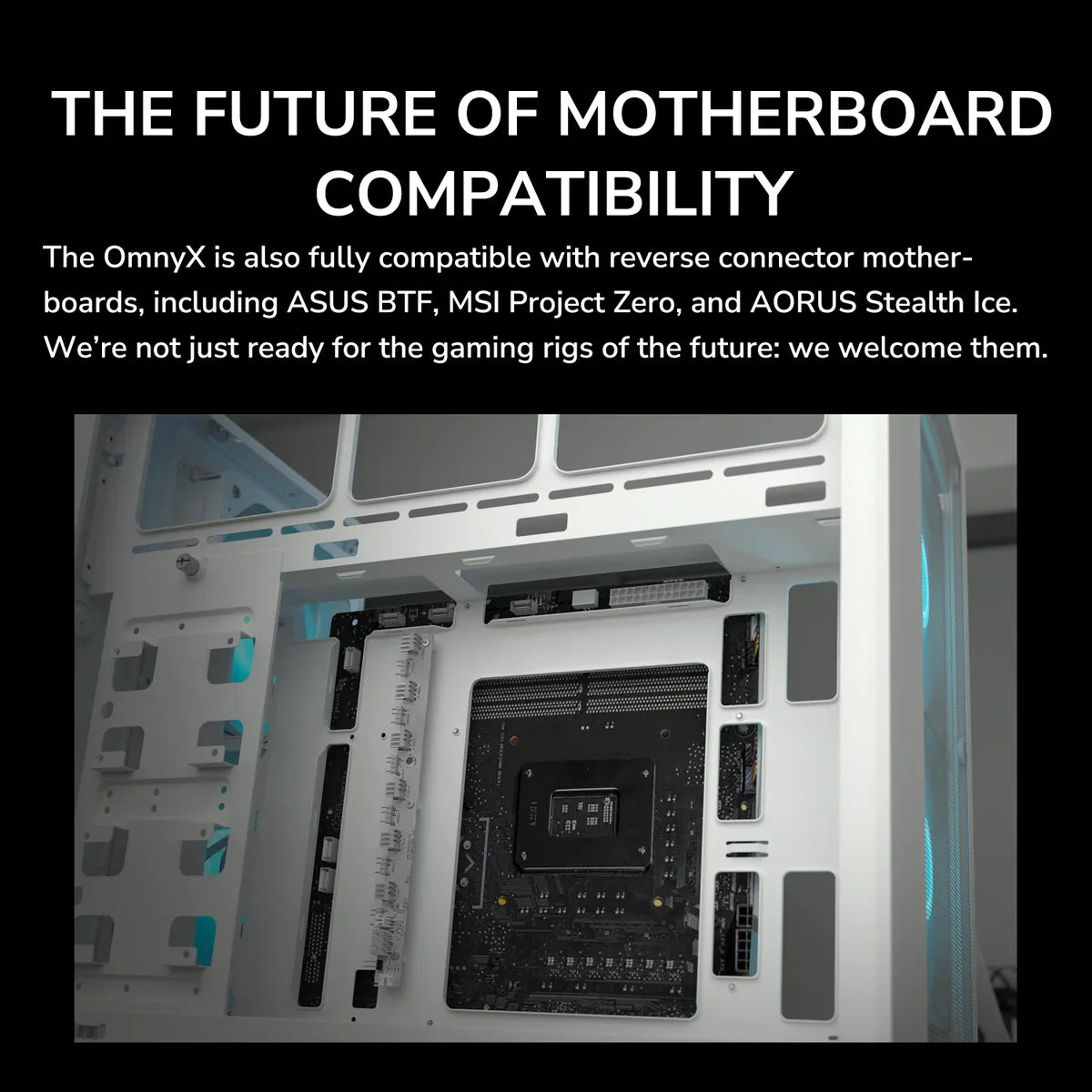

Reverse-Connector Motherboard Support

The OmnyX is designed to support compatible reverse-connector motherboard platforms, including examples such as:

ASUS BTF
MSI Project Zero
GIGABYTE Project Stealth

By moving compatible connections behind the motherboard, these designs can help reduce visible cabling in the main chamber.

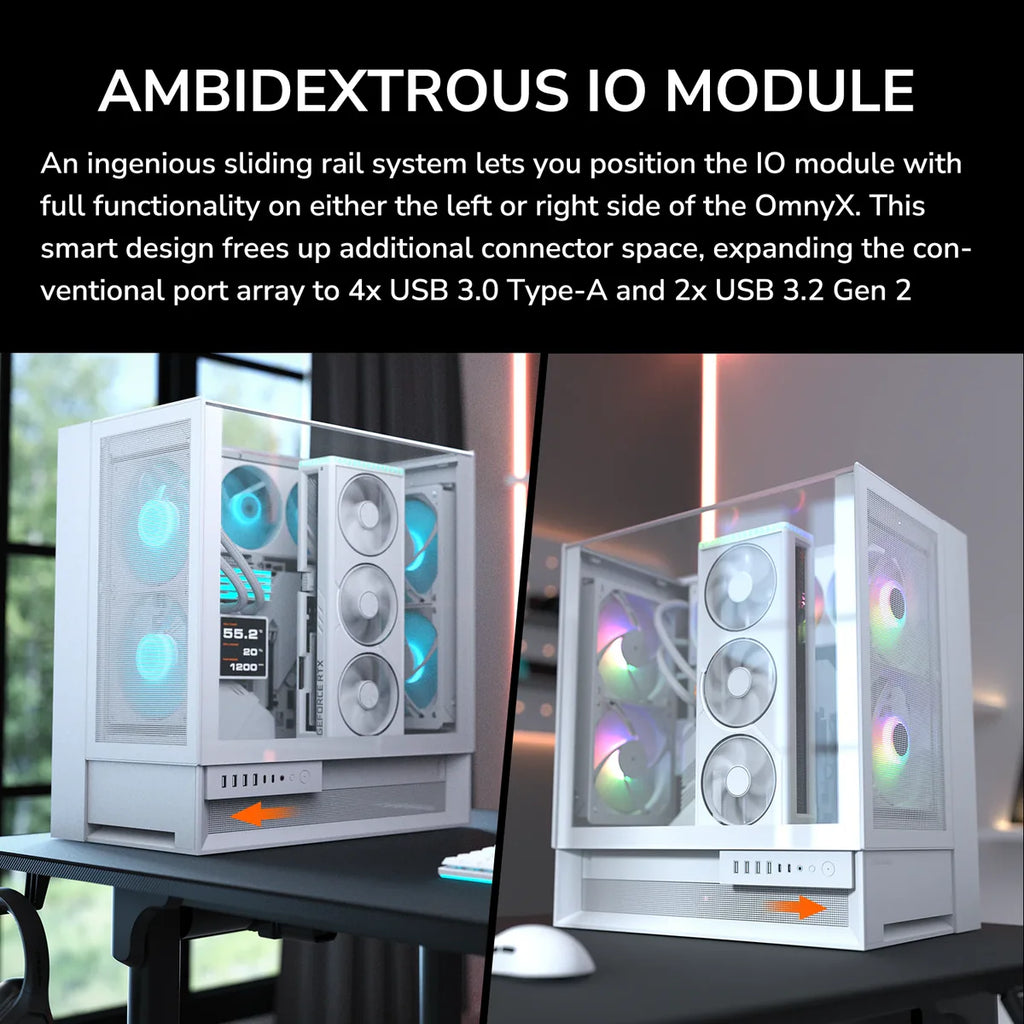

Ambidextrous I/O

A sliding rail system allows the I/O module to be repositioned to the left or right side of the chassis.

Connectivity includes:

2 × USB 3.2 Gen 2 Type-C
4 × USB 3.0 Type-A
1 × 4-Pole Headset Audio Jack
RGB Control Button

That's a particularly generous front I/O selection, especially with two Type-C ports.

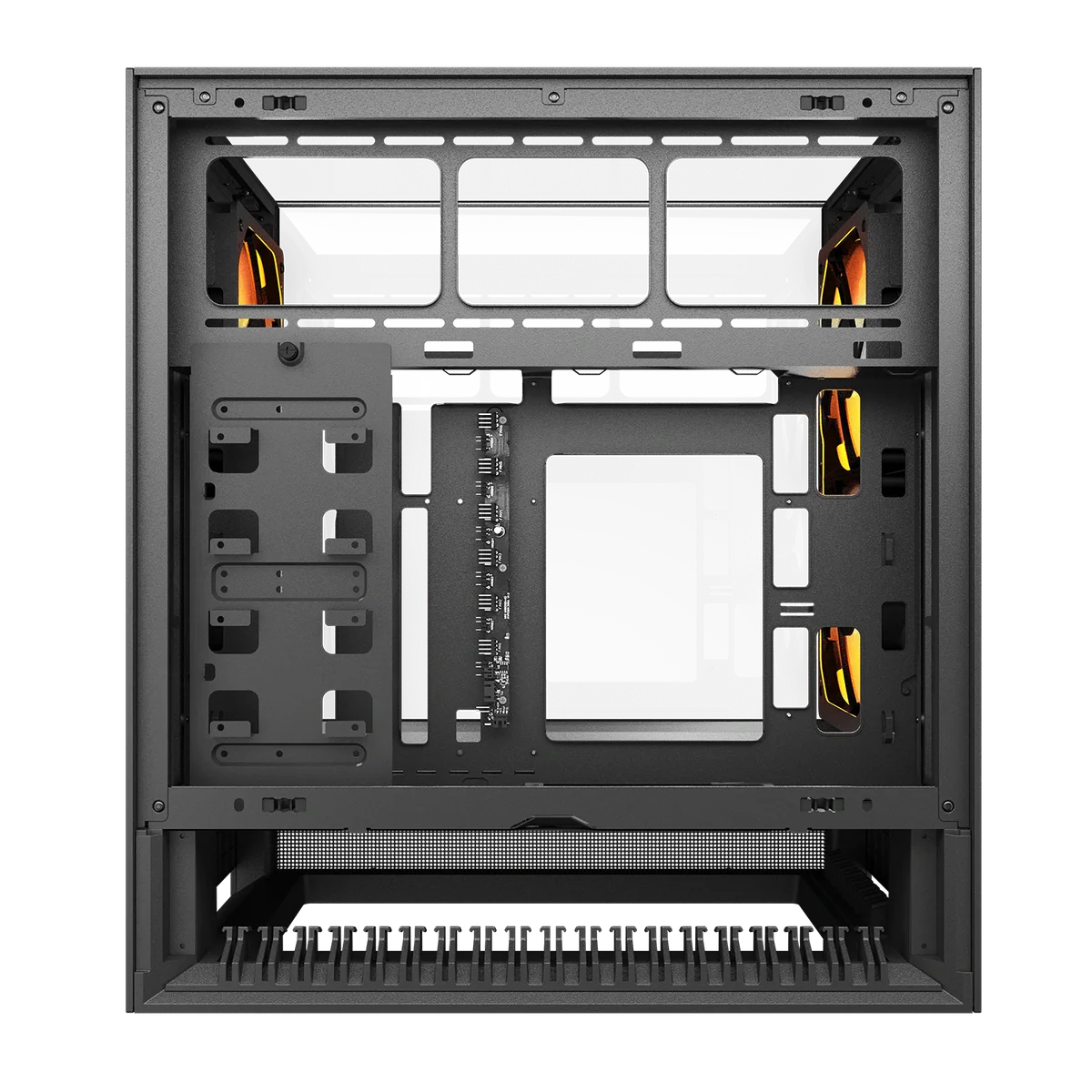

Cable Management

The OmnyX routes cables through an integrated base compartment, helping keep wiring hidden from the primary viewing areas.

Toolless PSU, fan, and SSD/HDD brackets further simplify component installation and maintenance.

Storage

2 × 3.5" Drive Bays
2 × 2.5" Drive Bays

Compatibility

Case Form Factor: Mid Tower
Motherboards: Mini-ITX / Micro-ATX / ATX
Expansion Slots: 7 convertible horizontal/vertical
Vertical GPU Support: Yes
Maximum GPU Length: 380mm / 15"
Maximum CPU Cooler Height: 170mm / 6.7"
Maximum PSU Length: 200mm / 7.9"

Fan Specifications

Pre-Installed Front Fans

Quantity: 2 × 160mm
Blade Type: Forward
Lighting: ARGB
Fan Control: PWM
Speed: 300–1200 RPM ±10%

Pre-Installed Rear Fans

Quantity: 2 × 160mm
Blade Type: Reverse
Lighting: ARGB
Fan Control: PWM
Speed: 300–1200 RPM ±10%

Connectors

ARGB: 5V 3-Pin
Fan: 4-Pin PWM

Dimensions

Width: 300mm / 11.8"
Height: 520mm / 20.5"
Depth: 470mm / 18.5"

Available Colour Options

Black
White

Why You'll Love It

The COUGAR OmnyX is made for builders who want their PC to be a centerpiece rather than something tucked away beside the desk.

Its symmetrical dual-glass architecture looks impressive from multiple viewing angles, while four huge 160mm ARGB PWM fans provide serious cooling straight out of the box. There's room for a 360mm radiator, a 380mm GPU, vertical graphics card installation, reverse-connector motherboards, and up to seven fans.

The repositionable I/O module and concealed base cable routing are particularly nice touches for a case that's meant to work with different desk layouts.

If you're building a premium system that deserves to be seen, the OmnyX gives you the hardware support and showcase aesthetic to do it.
