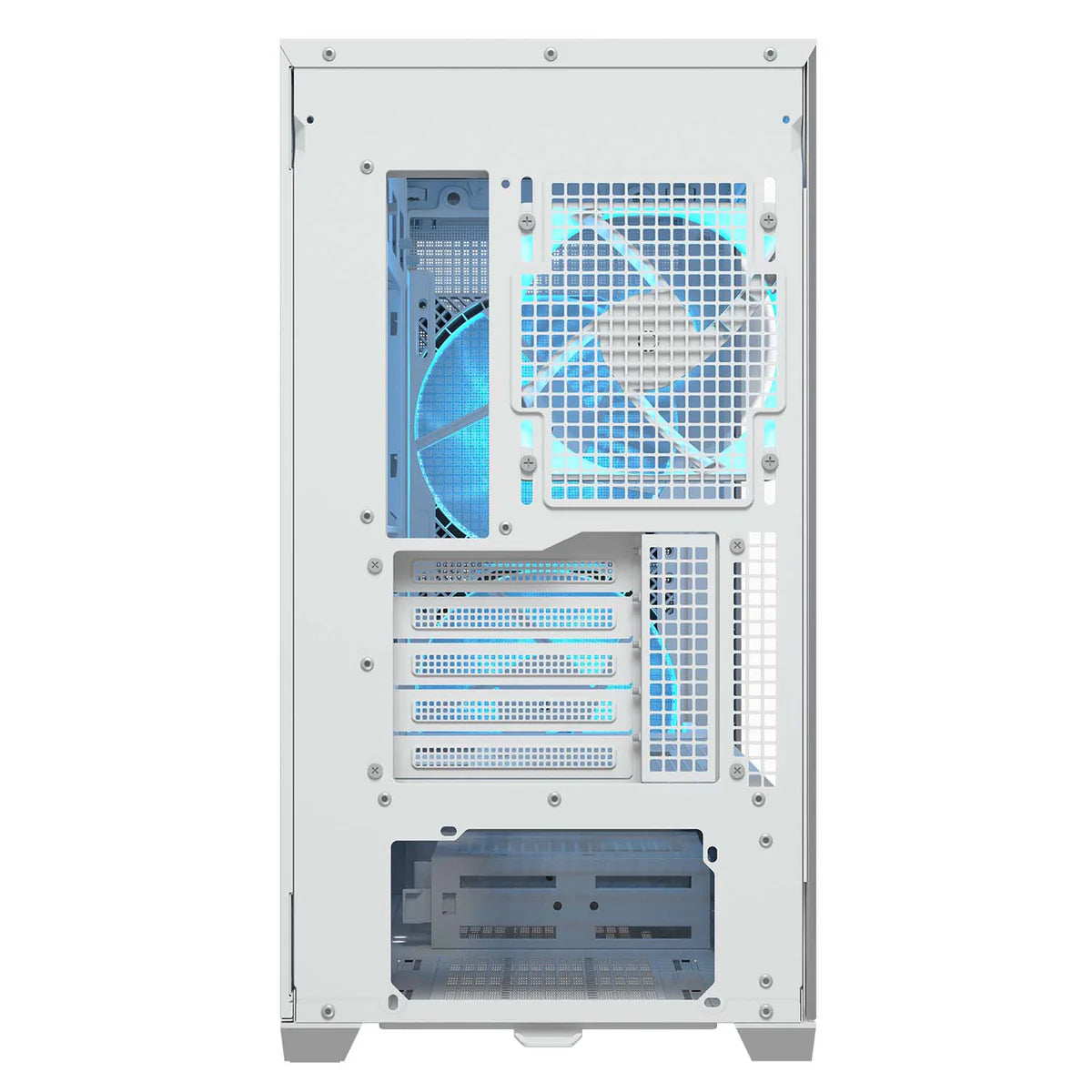

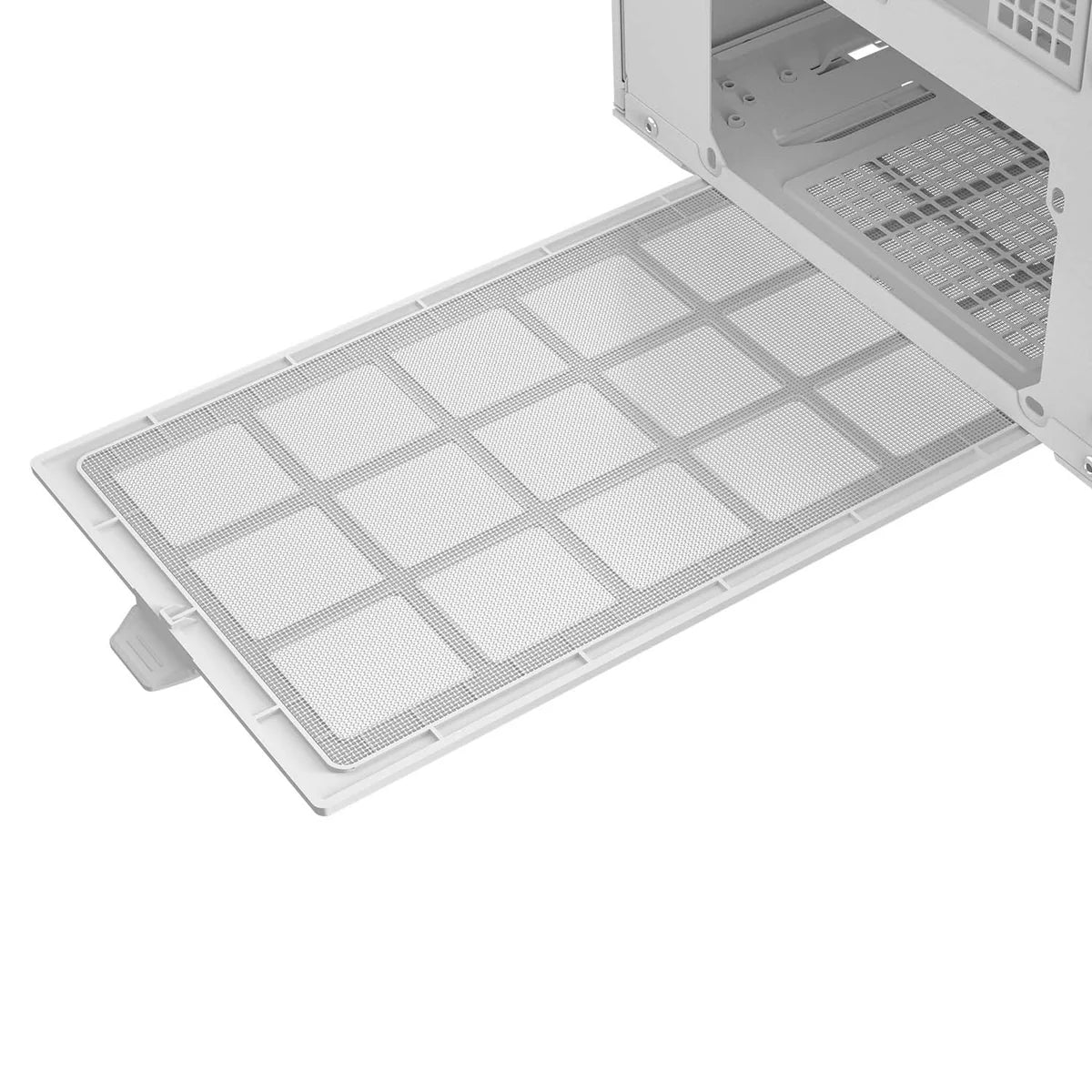

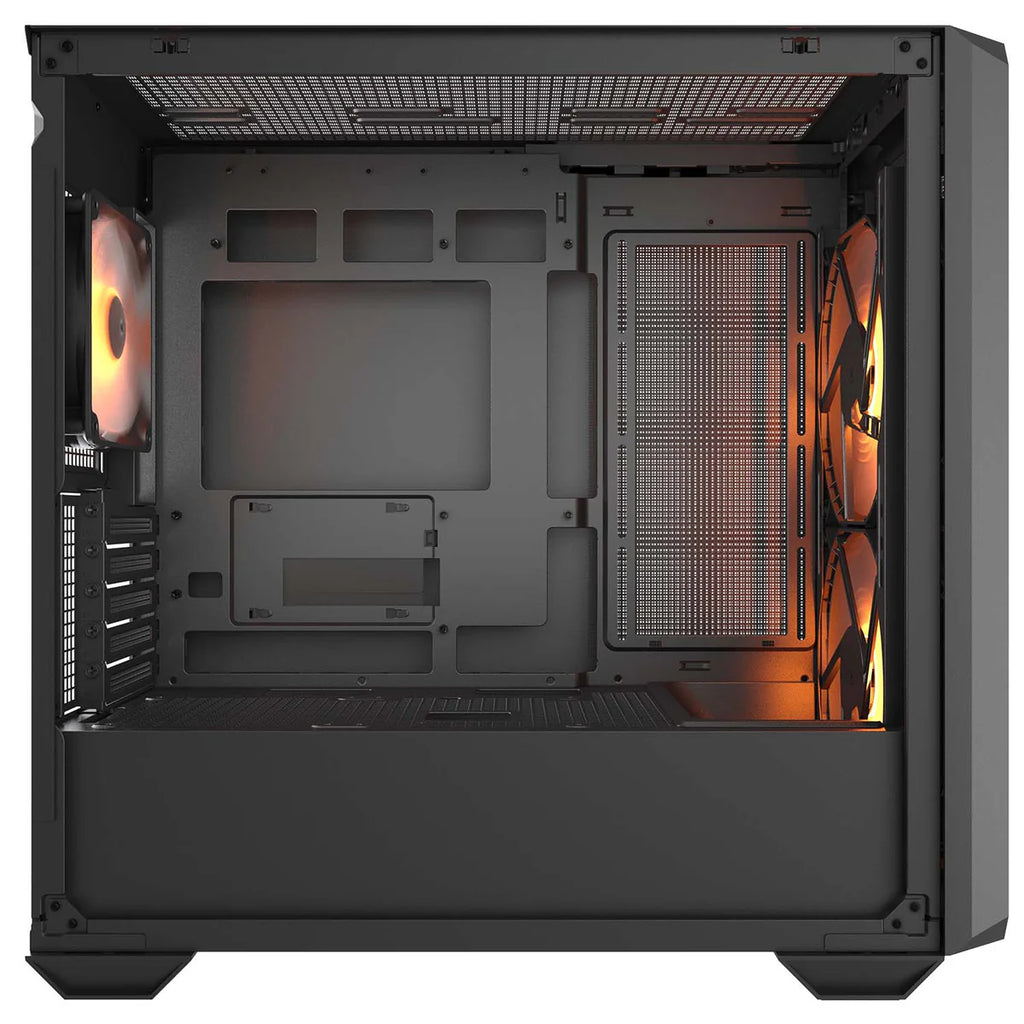

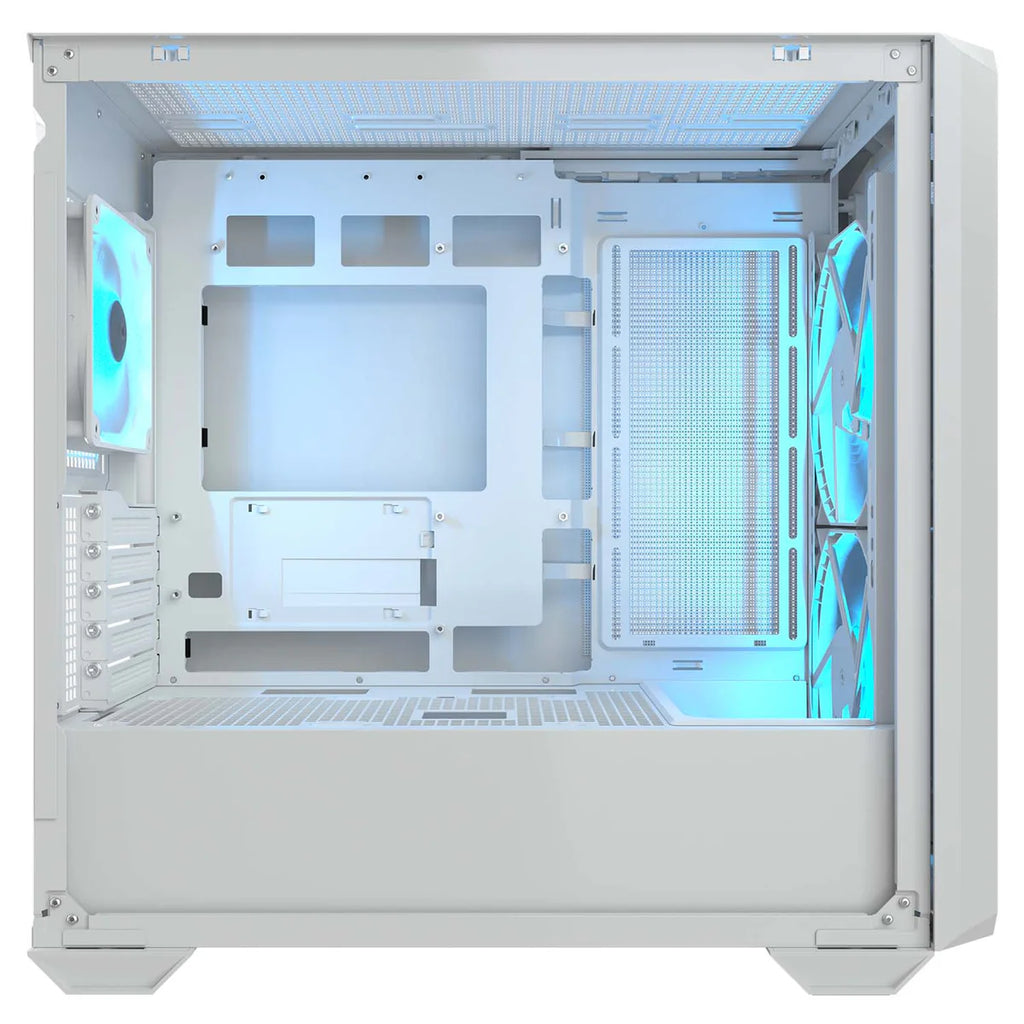

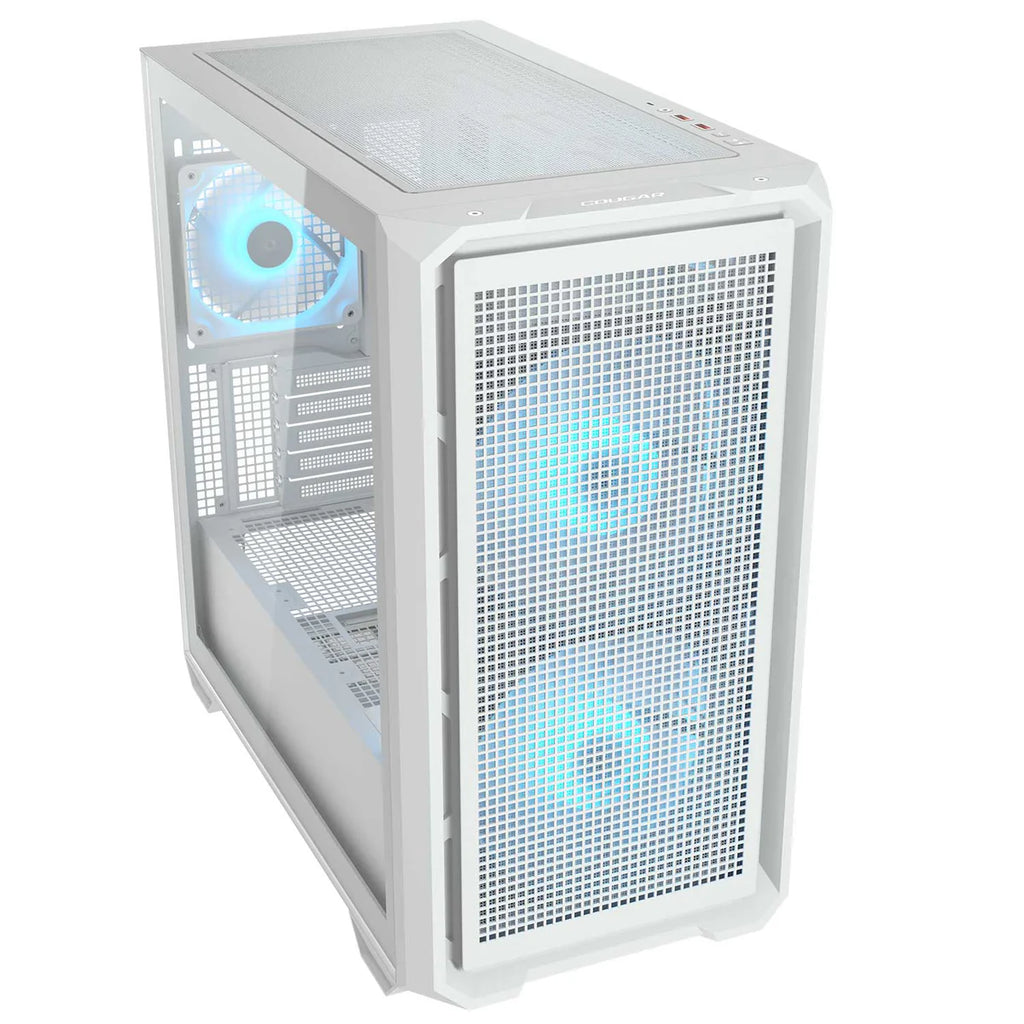

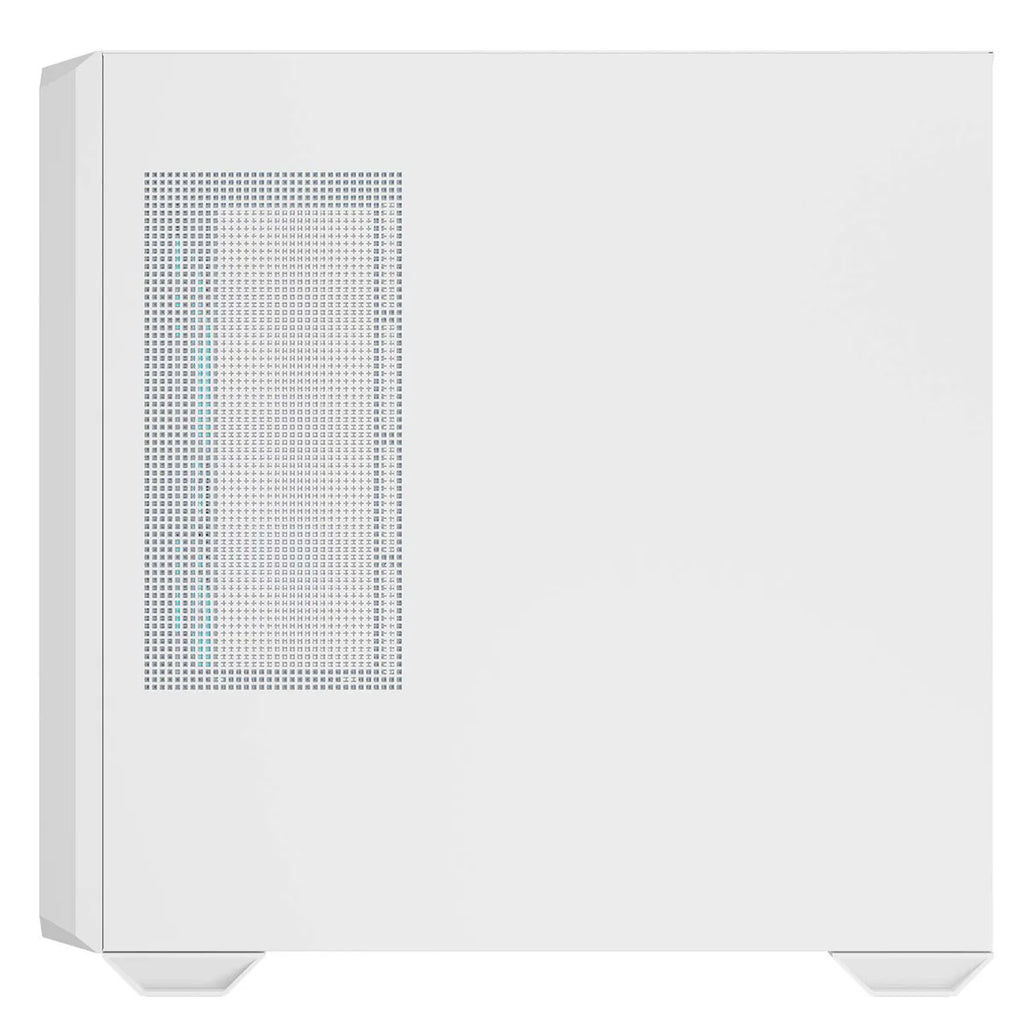

COUGAR MX600 Mini RGB Mini-Tower Case

The COUGAR MX600 Mini RGB packs serious cooling potential into a compact Mini-Tower design. Equipped with two pre-installed 160mm ARGB PWM front fans and a 120mm ARGB PWM rear fan, it delivers strong airflow straight out of the box while supporting up to 10 fans for more advanced cooling configurations.

Despite its compact footprint, the MX600 Mini RGB supports graphics cards up to 380mm, top-mounted radiators up to 360mm, and reverse-connector motherboards. A sloped airflow ramp, ventilated design, integrated PWM and RGB hub, and flexible storage options make it a capable foundation for powerful Micro-ATX and Mini-ITX builds.

Key Features

• Compact Mini-Tower Design: Designed for Mini-ITX and Micro-ATX systems while retaining substantial cooling and hardware compatibility.
• Dual 160mm ARGB PWM Front Fans: Two large 160mm fans come pre-installed to provide powerful front intake airflow.
• Pre-Installed 120mm Rear Fan: An additional 120mm ARGB PWM fan provides rear exhaust cooling straight out of the box.
• Up to 10 Fans: Extensive mounting positions throughout the chassis provide impressive cooling potential for a Mini-Tower case.
• Up to 360mm Top Radiator Support: Accommodates liquid-cooling radiators up to 360mm at the top.
• Motherboard-Side Radiator Support: Supports up to a 240mm radiator beside the motherboard.
• Reverse-Connector Motherboard Support: Compatible with supported reverse-connector Micro-ATX motherboard designs for cleaner cable management.
• Sloped Airflow Ramp: Helps guide incoming airflow through the chassis toward internal components.
• Square Front Perforations: The front-panel perforation design is specified to provide 11% increased airflow compared with conventional circular perforations.
• Up to 380mm GPU Support: Provides room for large graphics cards, depending on the motherboard-side cooling configuration.
• 175mm CPU Cooler Clearance: Supports substantial tower-style CPU air coolers.
• Integrated PWM & RGB Hub: Coordinates PWM fan speed and RGB lighting with support for compatible motherboard synchronization.
• Flexible Storage: Supports multiple SSD/HDD configurations depending on how the drive bays are used.
• Modern Front I/O: Includes USB Type-C, dual USB 3.0 Type-A ports, headset connectivity, and an RGB control button.

High-Performance Cooling

The MX600 Mini RGB includes three ARGB PWM fans from the factory:

• Front: 2 × 160mm ARGB PWM
• Rear: 1 × 120mm ARGB PWM

The front 160mm fans operate between 400–1200 RPM ±10%, while the rear 120mm fan operates between 500–1400 RPM ±10%.

Fan Support

The MX600 Mini RGB supports a maximum of 10 fans:

Front

• 2 × 160mm

Top

• 3 × 120mm
• or 2 × 140mm

Motherboard Side

• 2 × 120mm

PSU Shroud

• 2 × 120mm

Rear

• 1 × 120mm

Water Cooling Support

Top

• 360mm
• 280mm
• 240mm
• 140mm
• 120mm

Motherboard Side

• 240mm
• 120mm

Rear

• 120mm

Important: The supplier specifies that a radiator can be installed at the top or motherboard side, but not both simultaneously.

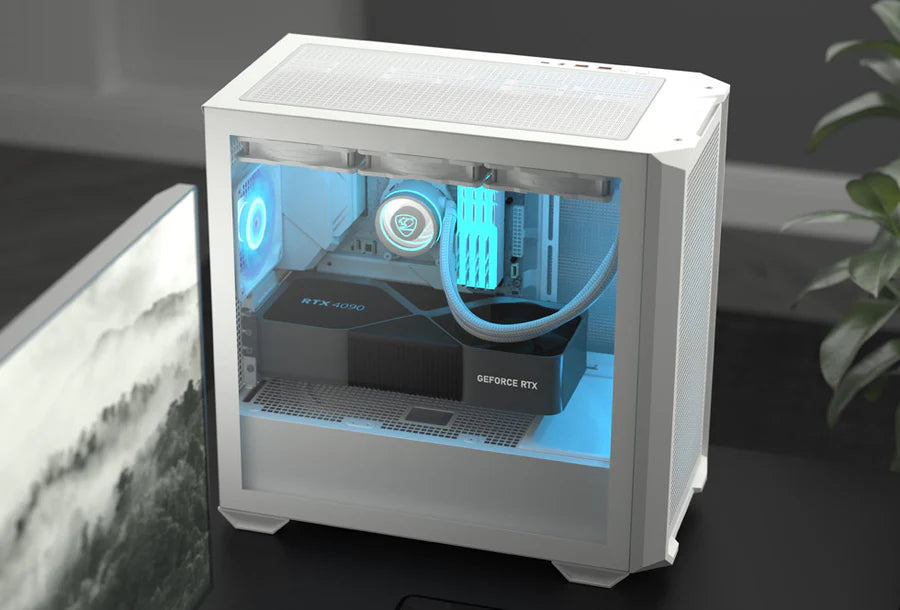

GPU Compatibility

The MX600 Mini RGB supports graphics cards up to:

• 380mm / 15" with fans installed at the motherboard side
• 255mm / 10" with a radiator and fans installed at the motherboard side

This is an important consideration when planning a side-mounted liquid-cooling configuration.

Reverse-Connector Motherboard Support

The MX600 Mini RGB supports compatible reverse-connector motherboard designs, allowing supported connections to be routed behind the motherboard for a cleaner-looking build.

Motherboard compatibility includes:

• Mini-ITX
• Micro-ATX

Integrated PWM & RGB Hub

A built-in universal hub provides centralized control for compatible PWM fans and RGB lighting.

RGB lighting can be controlled through the case or synchronized with compatible motherboard lighting software for a coordinated system-wide appearance.

Storage

The case provides:

• 2 × 3.5" Drive Bays
• 1 × 2.5" Drive Bay
• 2 additional 2.5" positions converted from the 3.5" bays

This allows configurations of up to:

• 3 × 2.5" SSDs

or

• 1 × 2.5" SSD + 2 × 3.5" HDDs

Front I/O

• 1 × USB Type-C Gen 2
• 2 × USB 3.0
• 1 × 4-Pole Headset Audio Jack
• RGB Control Button

Compatibility

• Case Form Factor: Mini Tower
• Motherboards: Mini-ITX / Micro-ATX
• Expansion Slots: 5
• Maximum GPU Length: 380mm / 15"*
• Maximum CPU Cooler Height: 175mm / 6.9"
• Maximum PSU Length: 180mm / 7.1"

*GPU clearance is reduced to 255mm / 10" when a radiator with fans is installed on the motherboard side.

Fan Specifications

160mm Front ARGB PWM Fans

• Quantity: 2
• Speed: 400–1200 RPM ±10%
• ARGB: 5V 3-Pin
• Fan: 4-Pin PWM

120mm Rear ARGB PWM Fan

• Quantity: 1
• Speed: 500–1400 RPM ±10%
• ARGB: 5V 3-Pin
• Fan: 4-Pin PWM

Dimensions

• Width: 232mm / 9.1"
• Height: 445mm / 17.5"
• Depth: 456mm / 18"

Available Colours

• Black
• White

Why You'll Love It

The COUGAR MX600 Mini RGB delivers an impressive amount of cooling and hardware flexibility for a compact Mini-Tower.

With three ARGB PWM fans pre-installed, room for up to 10 total fans, support for a 360mm top radiator, GPUs up to 380mm, and reverse-connector motherboards, you can build a seriously capable system without moving up to a full-sized ATX chassis.

It's especially appealing for anyone who wants the cleaner footprint of a Micro-ATX build without giving up the cooling options and visual presence normally associated with larger cases.
