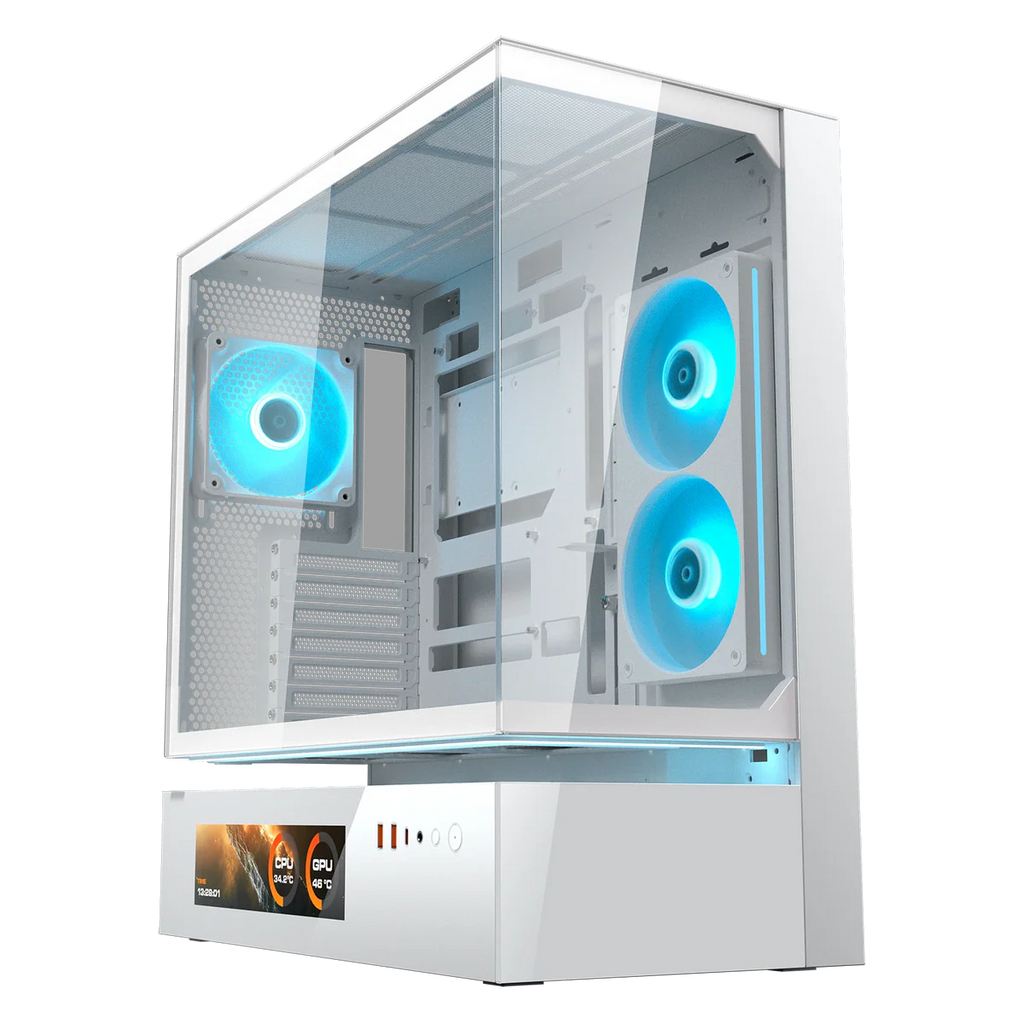

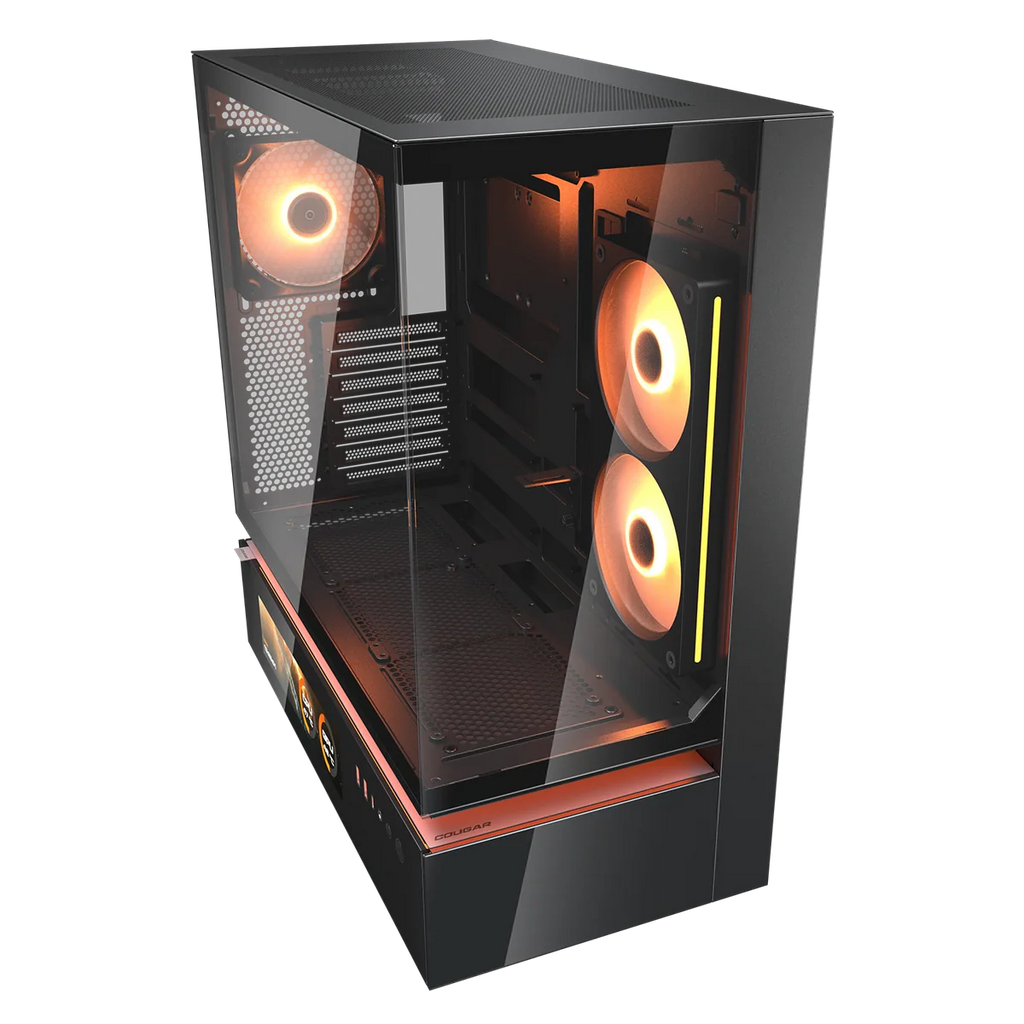

COUGAR CFV235 Vision Mid-Tower Case

The COUGAR CFV235 Vision combines panoramic styling, innovative airflow architecture, and an integrated display in a distinctive mid-tower chassis.

Its Central Floating Ventilation (CFV) design separates the PSU chamber from the main system chamber, creating an open ventilation channel with 270° airflow access. A built-in 9.16-inch IPS TFT LCD adds real-time system monitoring and customizable visuals, while pre-installed ARGB fans, an Aurora RGB strip, and extensive cooling support make the CFV235 Vision ready for high-performance builds.

Key Features

• Central Floating Ventilation Design: Separates the PSU chamber and main system chamber with an open structural channel designed to provide additional airflow.
• 270° Airflow Access: The suspended ventilation space provides airflow access across three sides of the central channel.
• 9.16" IPS TFT LCD Display: Integrated 1920 × 462 display with a 60Hz refresh rate for system information and customizable visual content.
• Custom Display Content: Supports JPG, PNG, GIF, and MP4 content through the accompanying desktop software.
• Panoramic Design: Open architecture puts your components on display while maintaining a relatively compact 235mm-wide footprint.
• Pre-Installed ARGB Cooling: Includes a Unity 240 ARGB PWM reverse-blade fan unit on the motherboard side and a 120mm ARGB PWM rear fan.
• Aurora RGB Lighting Strip: Included magnetic lighting strip illuminates the central floating ventilation area.
• Integrated PWM & RGB Hub: Coordinate PWM fan control and RGB lighting, with support for motherboard synchronization.
• Up to 9 Fans: Extensive fan mounting options provide plenty of room to expand your cooling setup.
• Up to 360mm Radiator Support: Supports top-mounted liquid-cooling radiators up to 360mm.
• Large GPU Support: Accommodates graphics cards up to 430mm / 16.9" in length.
• GPU Support Bracket: Includes an L-shaped mounting bracket designed to help support large graphics cards.
• Reverse-Connector Motherboard Compatible: Supports reverse-connector designs alongside conventional motherboard layouts.

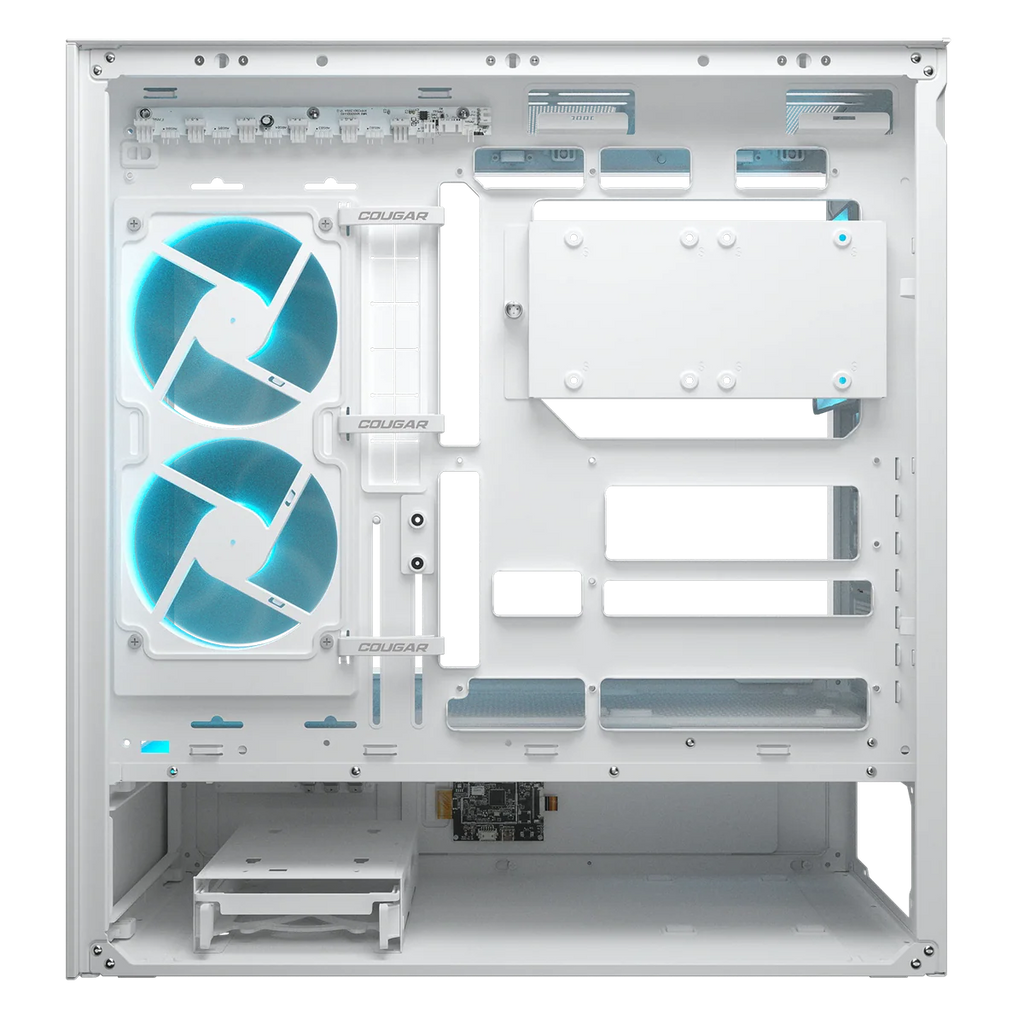

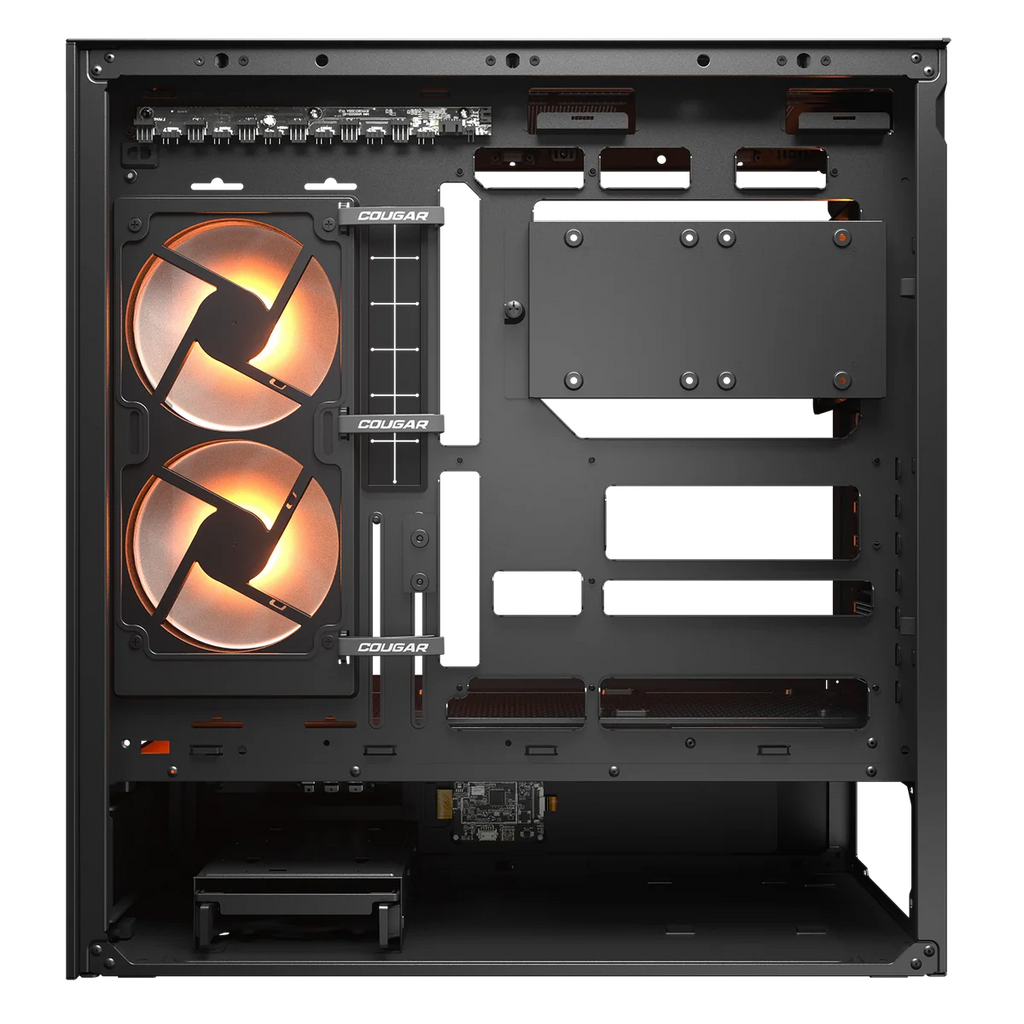

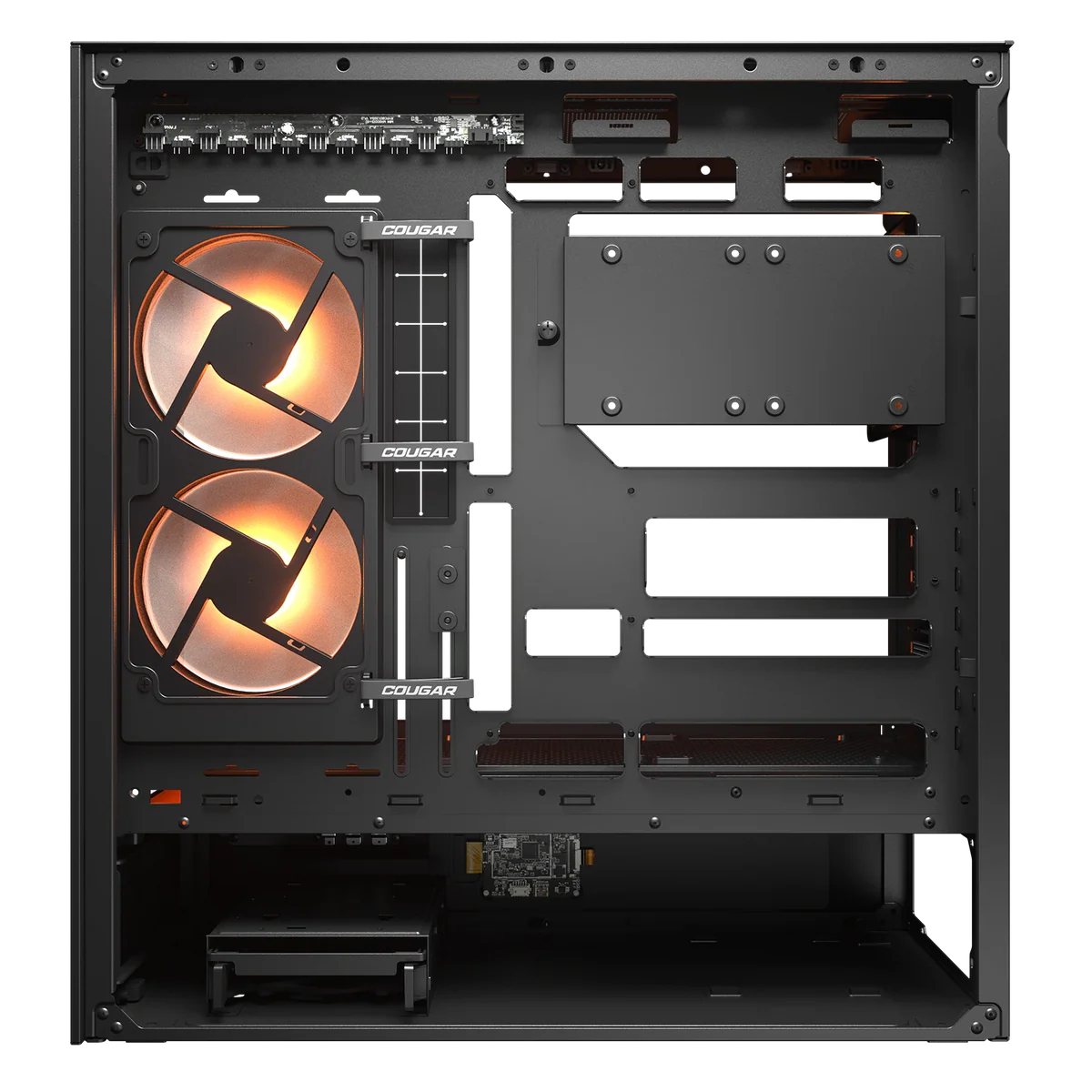

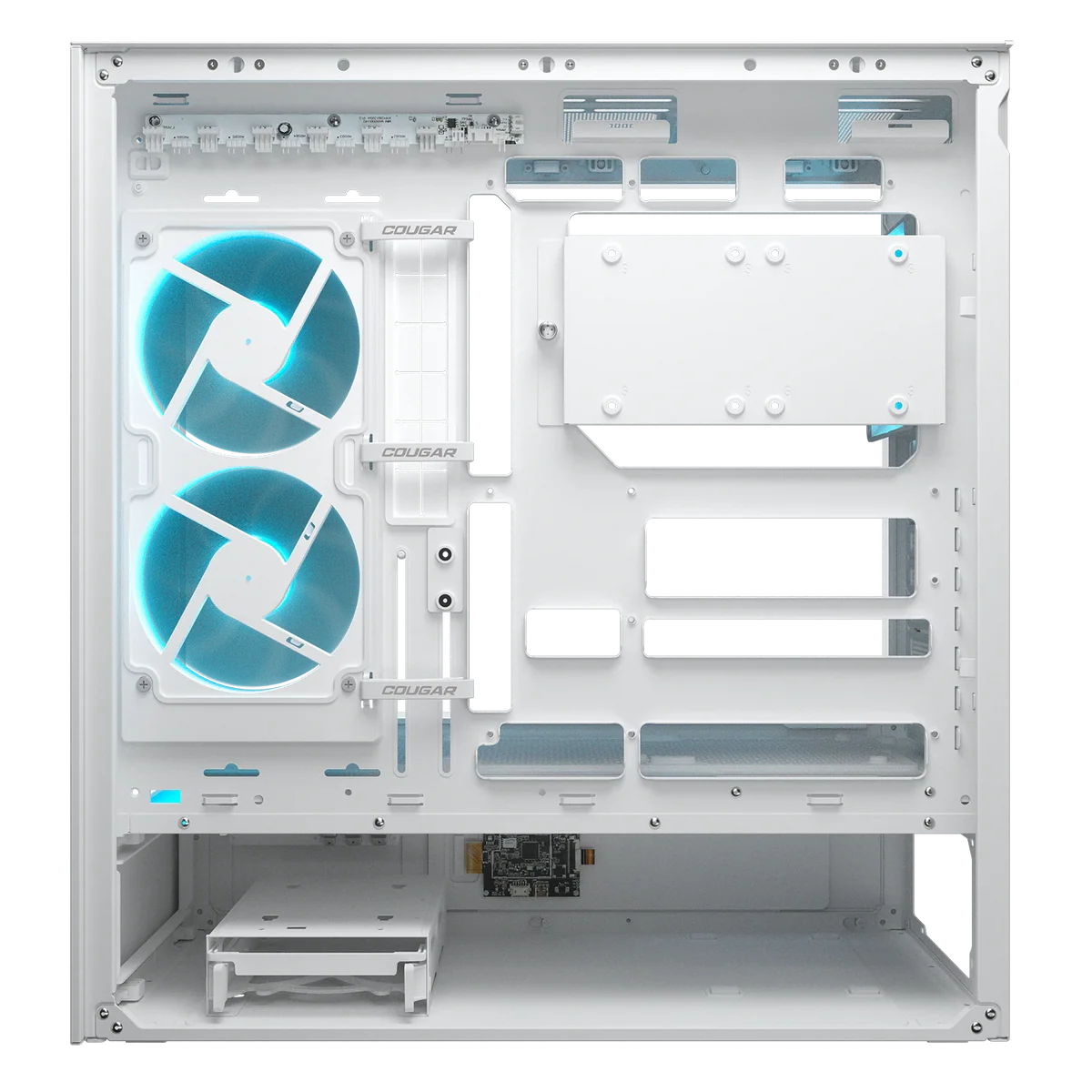

• 38mm Cable Management Space: Generous clearance behind the motherboard tray plus five adjustable Velcro straps helps keep cables organized.
• Dual Magnetic Dust Filters: Magnetic filtration at the top and base of the CFV structure helps reduce dust buildup.
• Reinforced Steel Construction: A 1.5mm-thick steel frame reinforces the chassis around its suspended ventilation design.

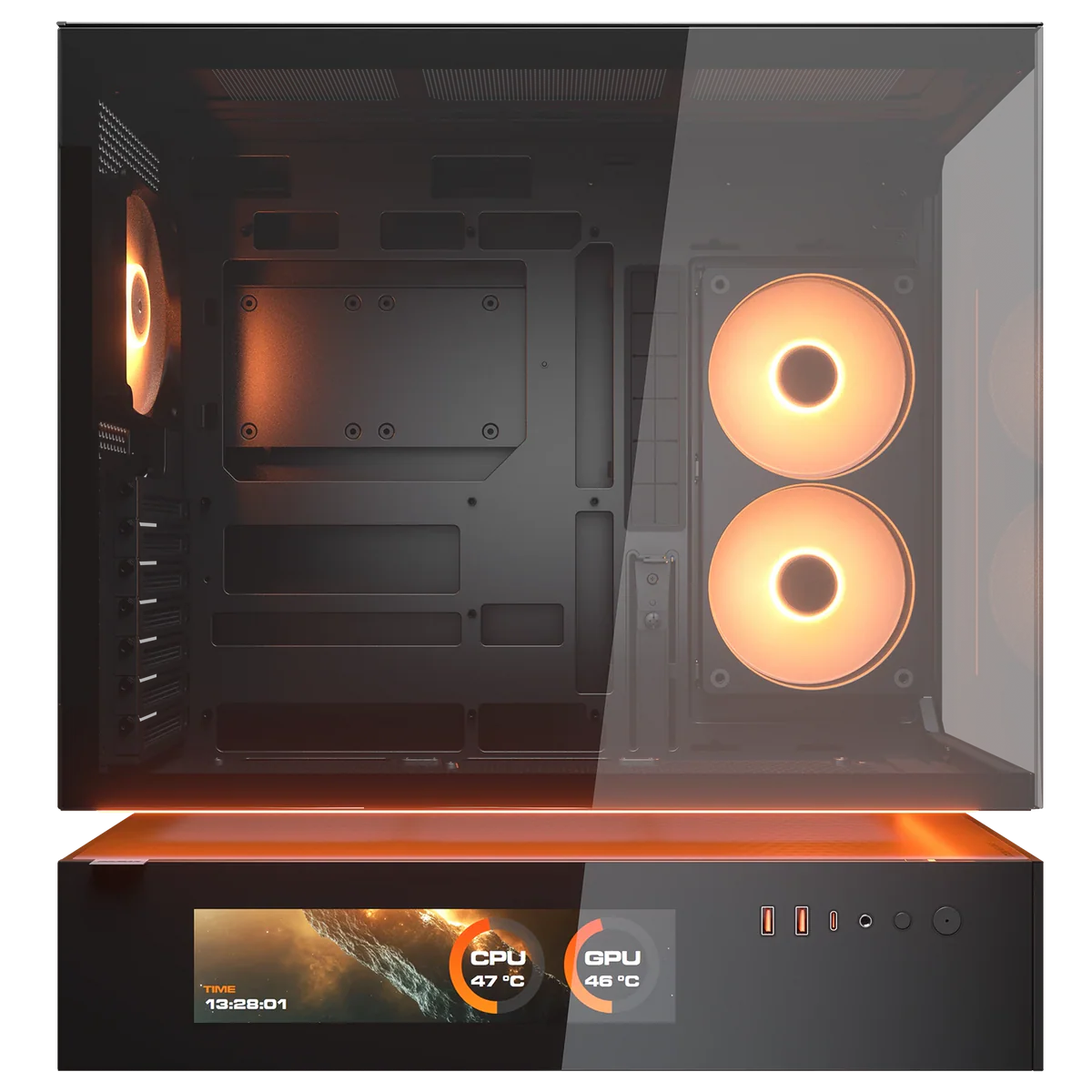

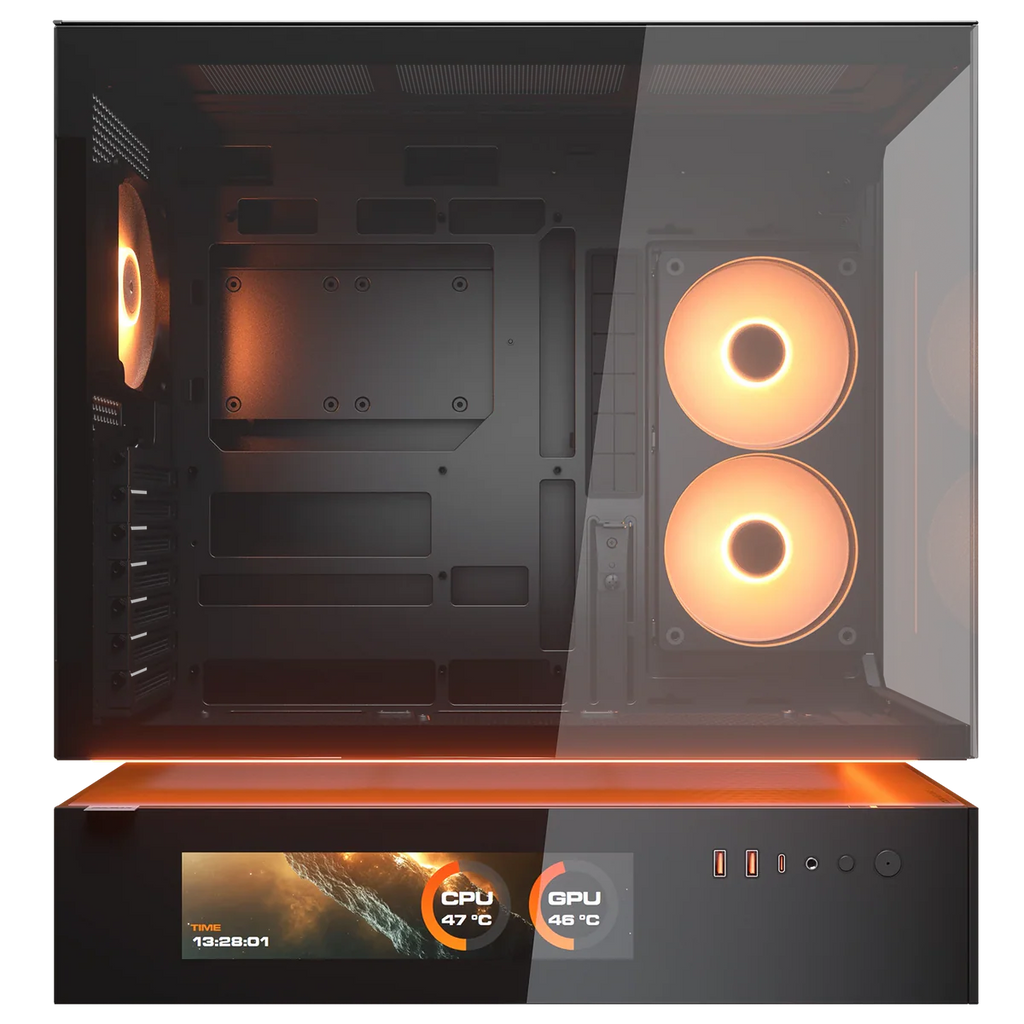

Integrated 9.16" Display

The CFV235 Vision features a built-in 9.16-inch IPS TFT LCD with a resolution of 1920 × 462 and a 60Hz refresh rate.

Use it to display system information such as temperatures and fan speeds or personalize your build with your own JPG, PNG, GIF, and MP4 content.

Display settings and customization are managed through desktop software.

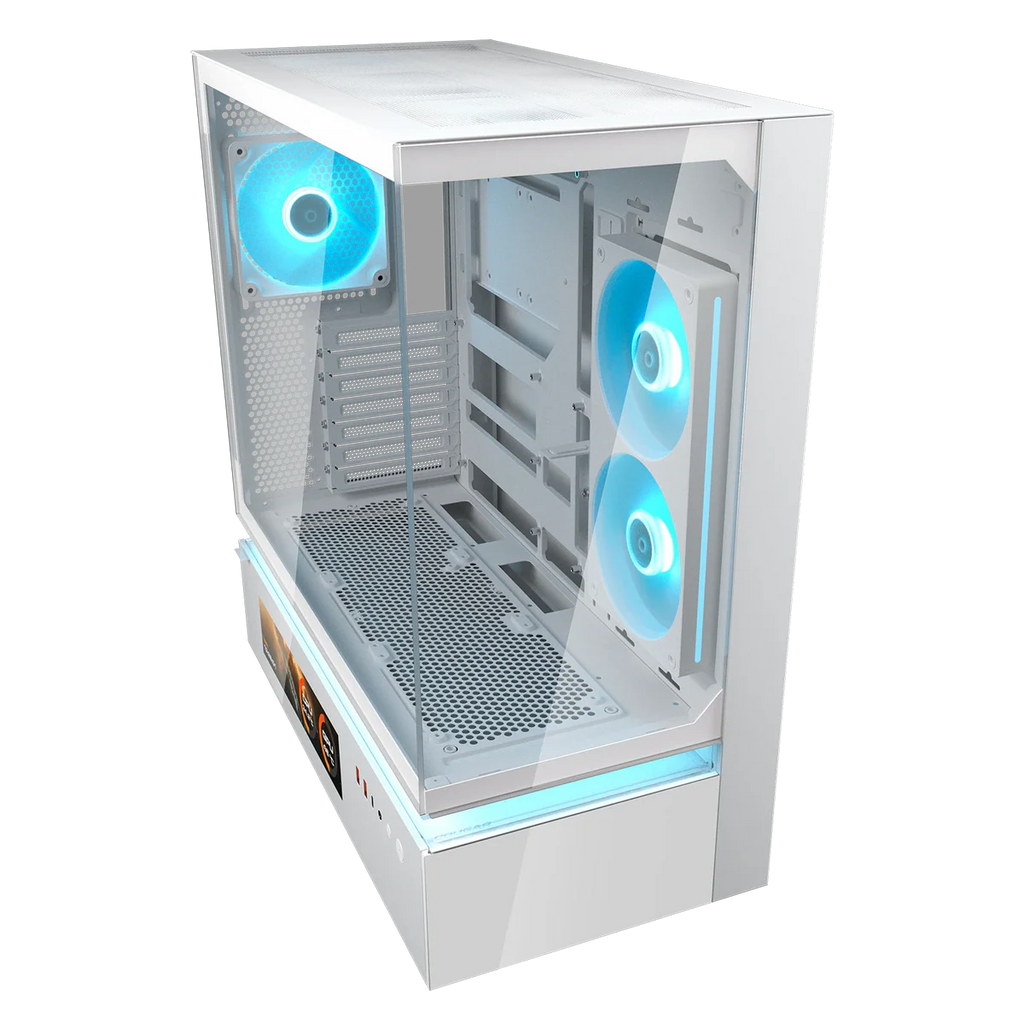

Central Floating Ventilation

Rather than placing the PSU chamber directly against the primary component area, COUGAR's Central Floating Ventilation architecture creates an open space between the two sections.

This suspended channel provides 270° of airflow access while also becoming a distinctive visual feature of the case.

The included magnetic Aurora RGB strip illuminates the open space to further highlight the floating design.

Cooling Support

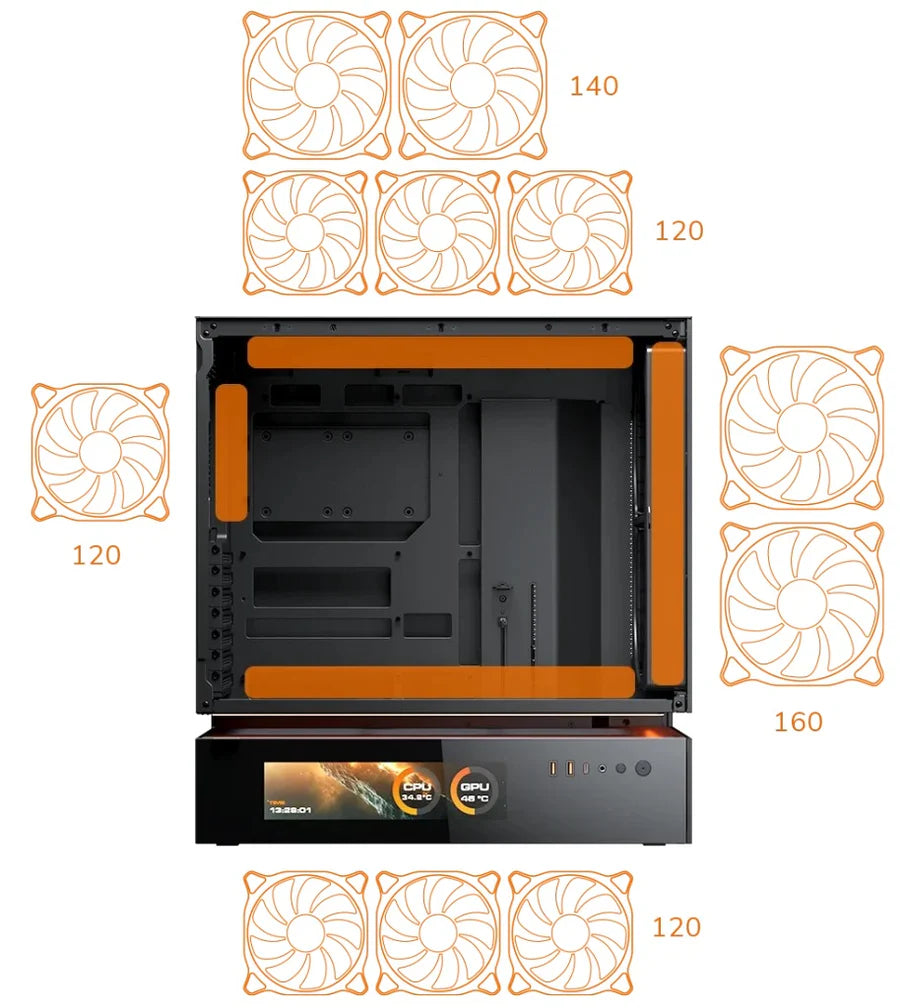

The CFV235 Vision supports up to 9 fans throughout the chassis:

• Top: 3 × 120mm or 3 × 140mm
• Motherboard Side: 2 × 120mm
• Bottom: 3 × 120mm

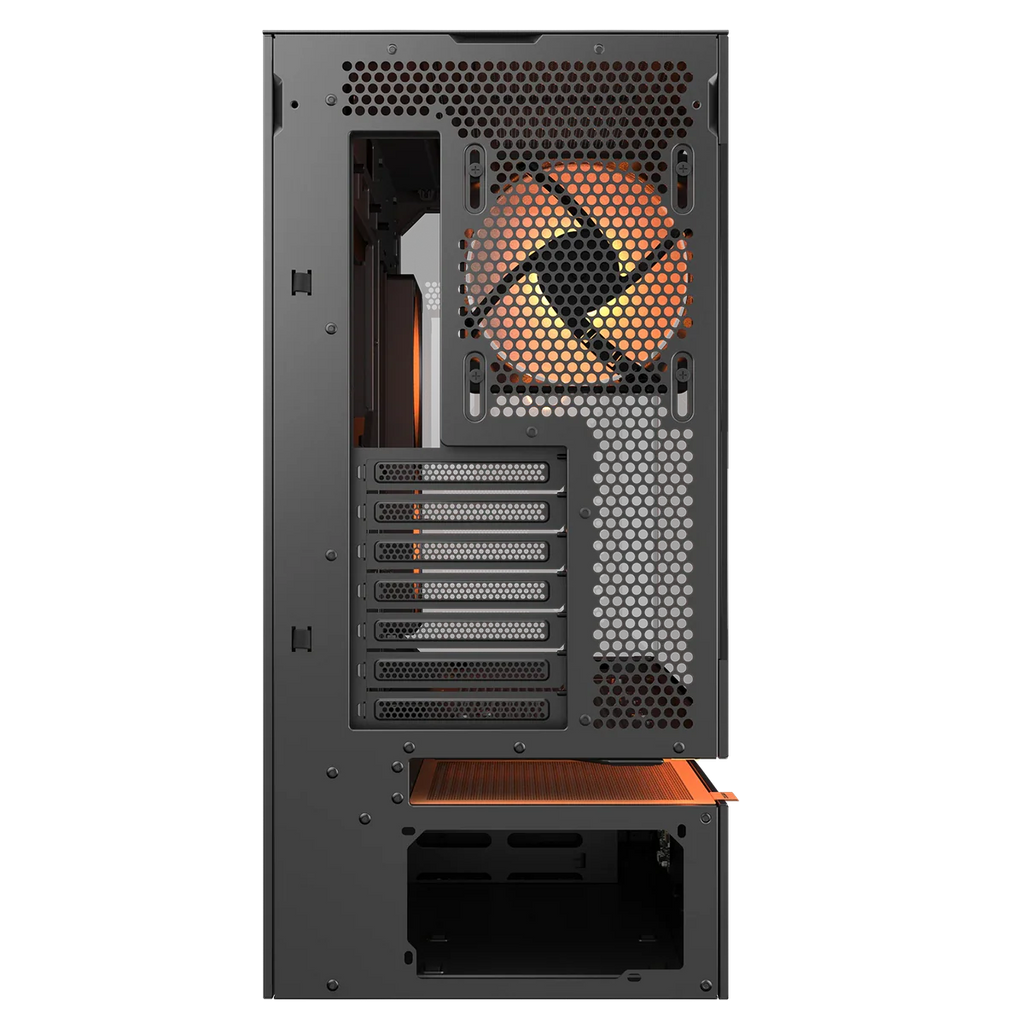

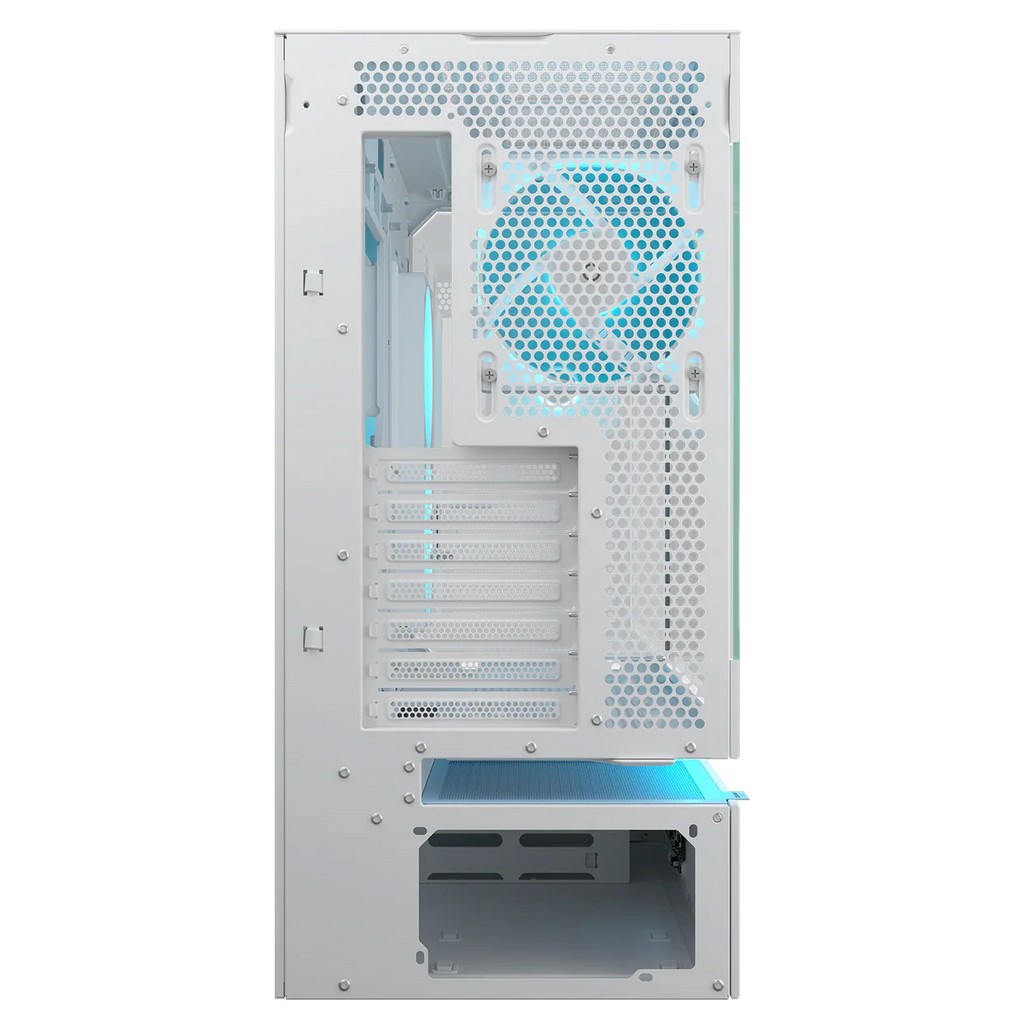

• Rear: 1 × 120mm

Pre-Installed Fans

• Motherboard Side: 1 × Unity 240 ARGB PWM Reverse-Blade Fan Unit
• Rear: 1 × 120mm ARGB PWM Fan
• Unity 240 Speed: 700–1600 RPM ±10%
• Rear Fan Speed: 500–1400 RPM ±10%
• Connections: 5V 3-Pin ARGB / 4-Pin PWM

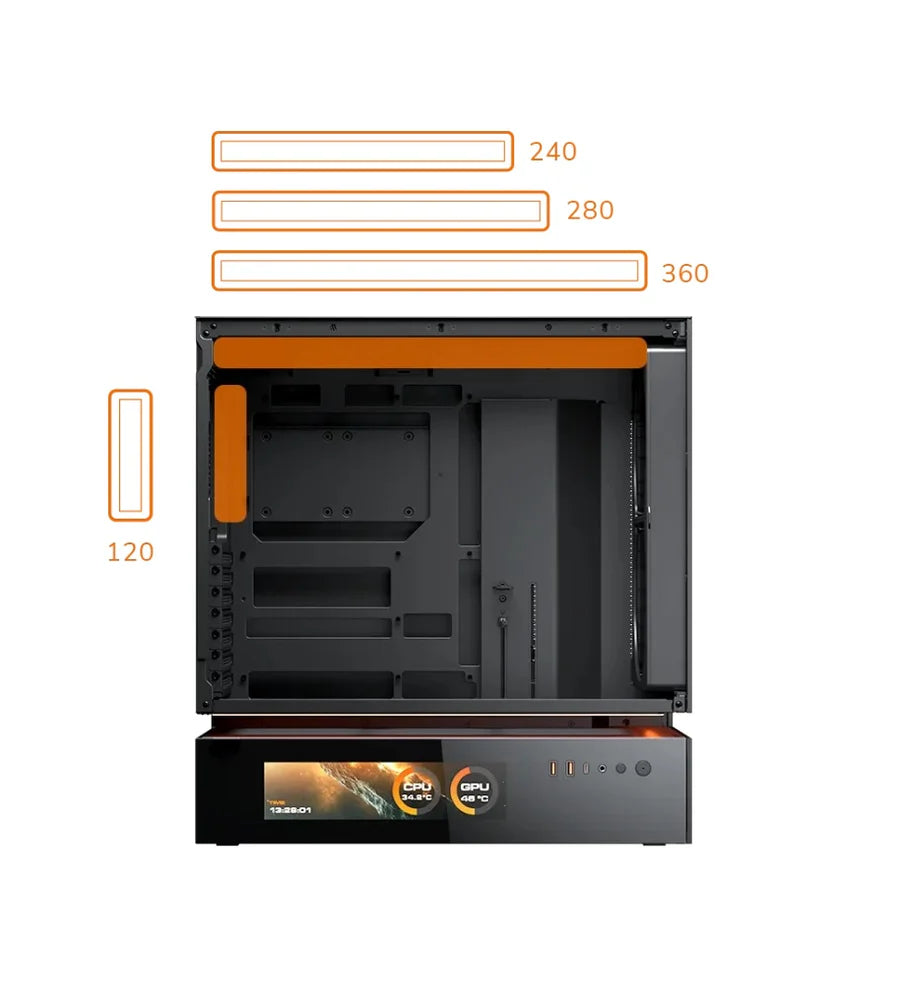

Water Cooling Support

Top

• 360mm
• 280mm
• 240mm
• 140mm
• 120mm

Rear

• 120mm

Compatibility

• Case Type: Mid Tower
• Motherboards: Mini-ITX / Micro-ATX / ATX / CEB
• Reverse-Connector Motherboards: Supported
• Maximum GPU Length: 430mm / 16.9"
• Maximum CPU Cooler Height: 175mm / 6.9"
• Maximum PSU Length: 200mm / 7.9"
• Expansion Slots: 7

Storage

• 3.5" Drive Bays: 2
• 2.5" Drive Bays: 2 dedicated + 2 converted from the 3.5" drive bays

Front I/O

• 1 × USB 3.2 Gen 2×2 Type-C
• 2 × USB 3.0 Type-A
• 1 × 4-Pole Headset Audio Jack
• RGB Control Button

The USB-C connection supports transfer speeds of up to 20Gbps.

Dimensions

• Width: 235mm / 9.3"
• Height: 493mm / 19.4"
• Depth: 460mm / 18.1"

Available Colours

• Black
• White

Why You'll Love It

The COUGAR CFV235 Vision isn't just designed to show off your components—it makes airflow part of the case's architecture.

The unusual floating chamber creates additional ventilation while giving the case a distinctive look, and the integrated 9.16-inch LCD adds another level of customization with live system information, images, animations, and video.

With support for GPUs up to 430mm, up to nine fans, 360mm liquid cooling, reverse-connector motherboards, and extensive cable-management space, it's built to accommodate powerful modern systems while keeping the finished build clean and visually striking.
